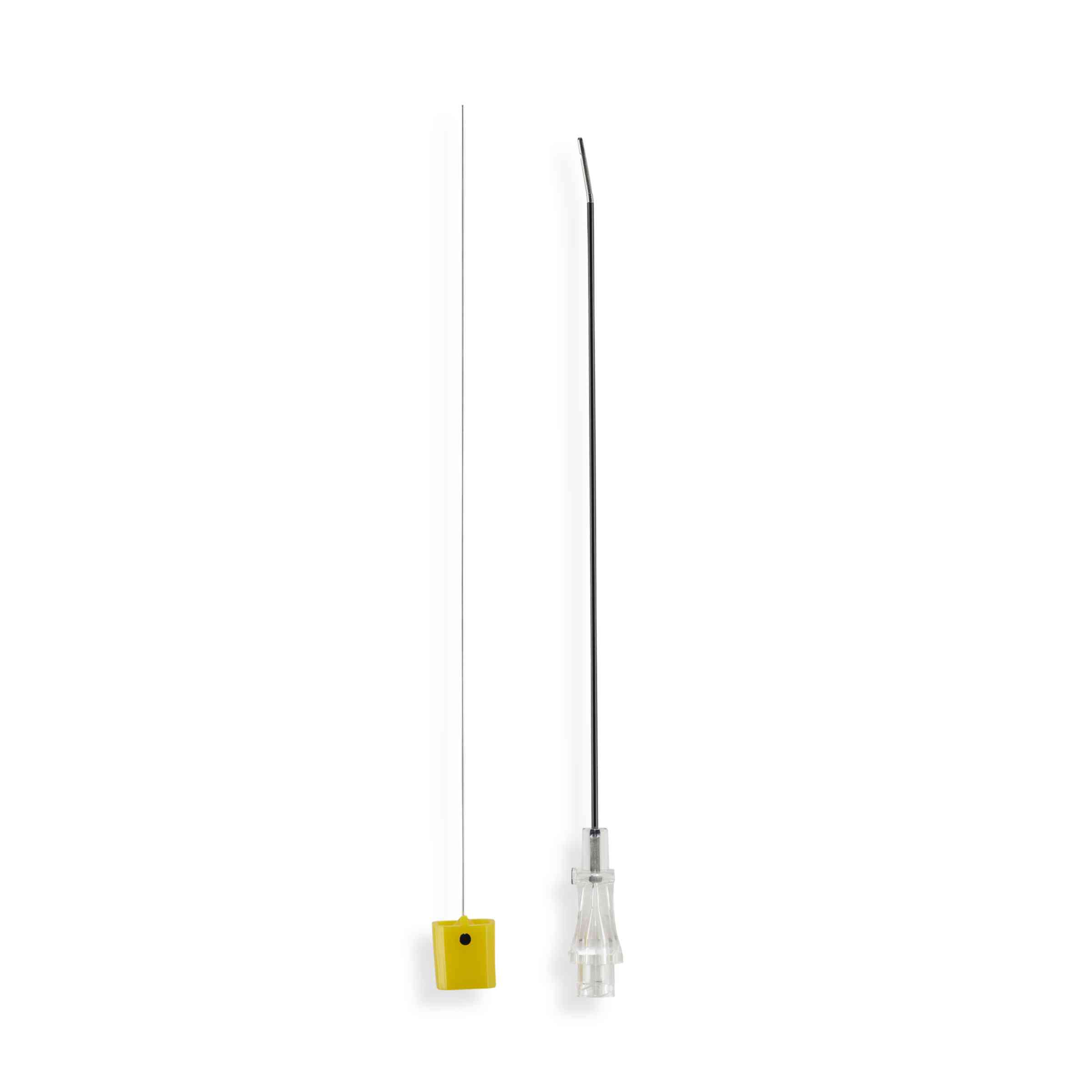

Avanos Curved Blunt RF (Radiofrequency) Cannula with Radiopaque Marker, 10 mm Tip, 20 G x 145 mm, PMF20-145-10CB
Avanos Curved Blunt RF (Radiofrequency) Cannula with Radiopaque Marker, 10 mm Tip, 20 G x 145 mm, PMF20-145-10CB
$551.95
- Medex SKU:
- AVA-PMF20-145-10CB
- Packing Info:
- 10/Pack
- Usually Ships:
- 7 - 10 Business Days
Description
The PMF20-145-10CB is a specialized Radiopaque Curved Blunt Radiofrequency (RF) Cannula manufactured by Avanos Medical. It is designed for interventional pain management to provide a safe and highly visible pathway for an RF probe during thermal ablation procedures.
The "B" suffix in the model name identifies the Blunt tip, which is used to enhance safety when working in close proximity to critical neurovascular structures.
Key Features
Radiopaque Platinum Band: Features a platinum marker at the distal end of the active tip. This provides high-contrast visualization under fluoroscopy, allowing clinicians to confirm the exact location of the intended lesion.
Blunt Tip Design: The rounded, non-sharp tip is engineered to glide through tissue and deflect away from nerves and blood vessels, minimizing the risk of accidental puncture or trauma.
Curved Shaft Geometry: The distal curve allows the clinician to "steer" the cannula around bony landmarks or follow specific anatomical contours that are unreachable with a straight needle.
Sure-Grip Hub: Includes an ergonomic, color-coded hub (typically yellow for 20 G) for secure handling and rapid identification of the cannula size.
High-Grade Insulation: The stainless steel shaft is fully insulated except for the 10 mm distal tip, ensuring thermal energy is focused solely on the target tissue.
Technical Specifications
Gauge: 20 G
Length: 145 mm
Active Tip: 10 mm
Tip Shape: Curved Blunt
Radiopacity: Platinum band marker
Sterility: Sterile, single-use, Ethylene Oxide (EO) processed
Quantity: 10 units per Case (CS)
