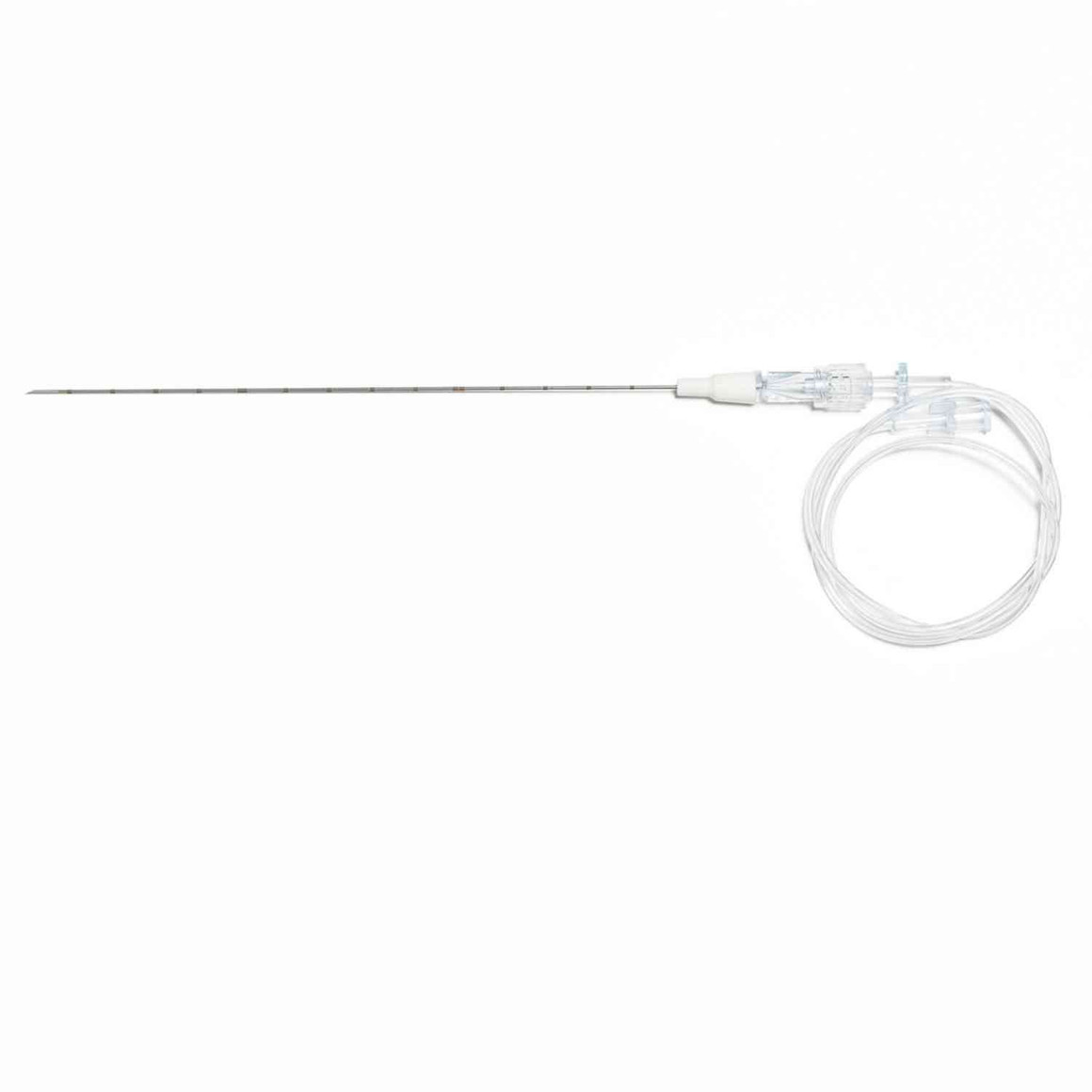

Avanos Echobright Single Shot Regional Nerve Stimulating Needle, 20G x 100 mm L, 21 Degree Bevel, EBL20100SGC
Avanos Echobright Single Shot Regional Nerve Stimulating Needle, 20G x 100 mm L, 21 Degree Bevel, EBL20100SGC
$501.95
- Medex SKU:
- AVA-EBL20100SGC
- Packing Info:
- 10/Case
- Usually Ships:
- 7 - 10 Business Days
- Notice:
- Due to regulatory requirements, this item can only be shipped to customers who have a valid Medical license on file. To add your license information, please click here
Description
The Avanos EBL20100SGC is an ECHOBRIGHT Single-Shot Stimulating Needle*. It is a specialized tool used by anesthesiologists for ultrasound-guided regional anesthesia, specifically for performing peripheral nerve blocks.
The "ECHOBRIGHT" line is designed to solve the common clinical problem of poor needle visibility under ultrasound, especially at steep angles.
Technical Specifications
The part number EBL20100SGC identifies these specific parameters:
Needle Gauge: 20G.
Needle Length: 100 mm (approximately 4 inches).
Needle Tip: 21° Facet Bevel (short-bevel design).
Configuration: Single-shot (non-catheter) with integrated stimulating cable and infusion set.
Key Features
360° Echogenicity: The needle shaft features a unique laser-etched pattern that reflects ultrasound waves back to the probe from any angle. This allows the clinician to see the entire needle shaft and tip clearly on the monitor.
Integrated Stimulation: Includes a pre-attached stimulating cable and infusion set. This allows for "dual guidance"—simultaneously using ultrasound to see the nerve and electrical stimulation to confirm the nerve's response.
Graduated Depth Markings: Numerical markings on the needle shaft allow the physician to monitor exactly how deep the needle has been inserted into the tissue.
Short-Bevel Tip: The 21° facet bevel is designed to provide better tactile feedback ("pops") as the needle passes through different tissue layers, such as fascia.
Primary Uses
This needle is used for Single-Shot Peripheral Nerve Blocks (PNB) where the target nerve is at a moderate depth, such as:
Sciatic Nerve Blocks: For surgeries on the lower leg, foot, or ankle.
Lumbar Plexus Blocks: For major hip or thigh surgeries.
Infraclavicular or Axillary Blocks: For surgeries on the arm or hand.
Deep Fascia Plane Blocks: Where seeing the needle tip is critical to ensuring the anesthetic is deposited in the correct anatomical space.
