Description

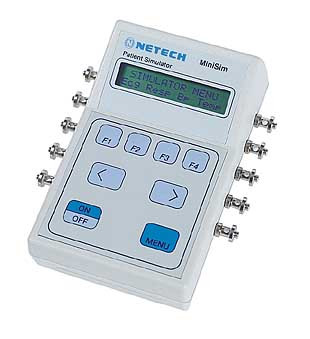

Features of the Netech MiniSim 1000 Multi-Parameter Arrhythmia Simulator:
- Powerful, comprehensive patient simulator in a compact case.
- Designed for testing the performance of patient monitoring instrumentation quickly and easily.
- The microprocessor based instrument is menu driven via its tactile feel keypad and easy to follow LCD display.
- Provides full 12 lead ECG simulation with 14 user selectabel rates from 30 to 350 BPM and 14 user selectable amplitudes from 0.15 to 5 mV. Sine, Square, and Triangle performance waveforms are simulated with 14 user selectable rates from 0.1 to 100 Hz.
- Simulates 45 different arrhythmias including atrial, ventricular, tall T wave, ST elevation, ST depression, myocardial infraction, blocks, pulse, and pacer waveforms. In addition, two invasive blood pressures are simulated with choice of 12 static pressures and 6 dynamic waveforms. Respiration is simulated with 4 rates. 4 base line impedance, and 4 delta impedance selections.
- Apnea may be off, continuous, and with either 12 or 32 second apnea bradycardia.
- Finally, temperature is available at either 25 or 37 degrees Centigrade.
- Powered by a 9 volt alkaline battery with a typical life of 40 continuos hours. The instrument provides unmatched choices of parameter simulation in a truly compact instrument.
Testing Features:
- 12 Lead ECG.
- 45 Arrhythmias.
- ECG Performance Waveforms.
- 2 Blood Pressure.
- Respiration / Apnea.
- Temperature.
Operating Features:
- Easy to Use.
- Small, Compact Size.
- Menu driven operation.
- Large LCD Display.
- Tactile Keypad.
- Battery or AC Operation.
