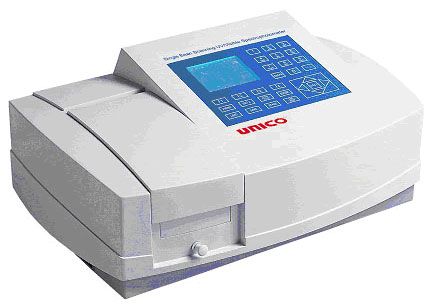

Unico SpectroQuest UV-Visible SQ2802A Spectrophotometer

(0) Write a Review
$6,445.95

Also Available In

For larger quantities: Request a Quote
MFR:
SQ2802A
Medex SKU:
UNC-SQ2802A
Packing Info:
1/Each
Usually Ships:
3 - 5 Business Days
Freight Quote Button:
False

Description

Features of the Unico SpectroQuest UV-Visible SQ2802A Spectrophotometer:



  • Wavelength Range: 190 - 1100 nm.

  • Spectral Bandwidth: 1.8 nm / 0.5, 1, 2, 5 nm.

  • Monochromator: Single beam Littrow type, grating 1200 lines/mm.

  • Wavelength Accuracy: ±0.3 nm.

  • Wavelength Repeatability: ±0.2 nm.

  • Wavelength Calibration: automatic at start.

  • Light Source: Tungsten Halogen/Deuterium Lamp.

  • Detector: Solid Silicon Photodiode.

  • Photometric Readout: 1/4 VGA 320X240 pixels backlit LCD.

  • Photometric Range: 0 - 200%T -0.3 - 3.0A 0 - 9999C.

  • Photometric Accuracy: ±0.3%T.

  • Zero Drift: < 0.002A per hour after warm-up.

  • Baseline Flatness: ±0.004A.

  • Stability: 0.002A/h at 500 nm.

  • Stray Light: < 0.15%T.

  • Scanning Speed: Hi, Med., Low. Max. 1000 nm/min.

  • Standard Sample Holder: 8-position Cell Holder.

  • Analogue/Digital Output: Digital, RS232 Serial, Centronics Parallel.

  • Dimensions: 620(L) x 400(W) x 280(H) mm.

  • Weight: 22 kg / 48 lbs.

  • Shipping Weight: 26 kg / 57 lbs.

  • Power Requirements: 115V/60Hz or 230V/50Hz, switchable.

  • Humidity Range: less than 85%.

  • Safety Certificate: CE.
