Description
High-Resolution Imaging & Display
8MP CMOS Sensor: Captures high-detail still images ($3264 \times 2448$ pixels) and Full HD video, essential for tracking the progression of lesions or infections.
5" Touchscreen Display: A large, 1280 x 720 pixel interface that allows for immediate on-device review of captures with a scratch-proof surface for durability.
UVC (Universal Video Class) Support: Allows for real-time live streaming to a PC or secondary monitor via USB, facilitating remote consultations and patient education.
Ergonomics & Operation
One-Handed Control: A built-in rotary wheel allows you to adjust both the focus and the LED brightness intensity with your thumb, keeping your other hand free.
Internal Storage: Comes with 16GB of built-in memory, capable of storing thousands of images and hours of video.
Intuitive UI: The software allows for easy toggling between photo and video modes, and supports multiple languages.

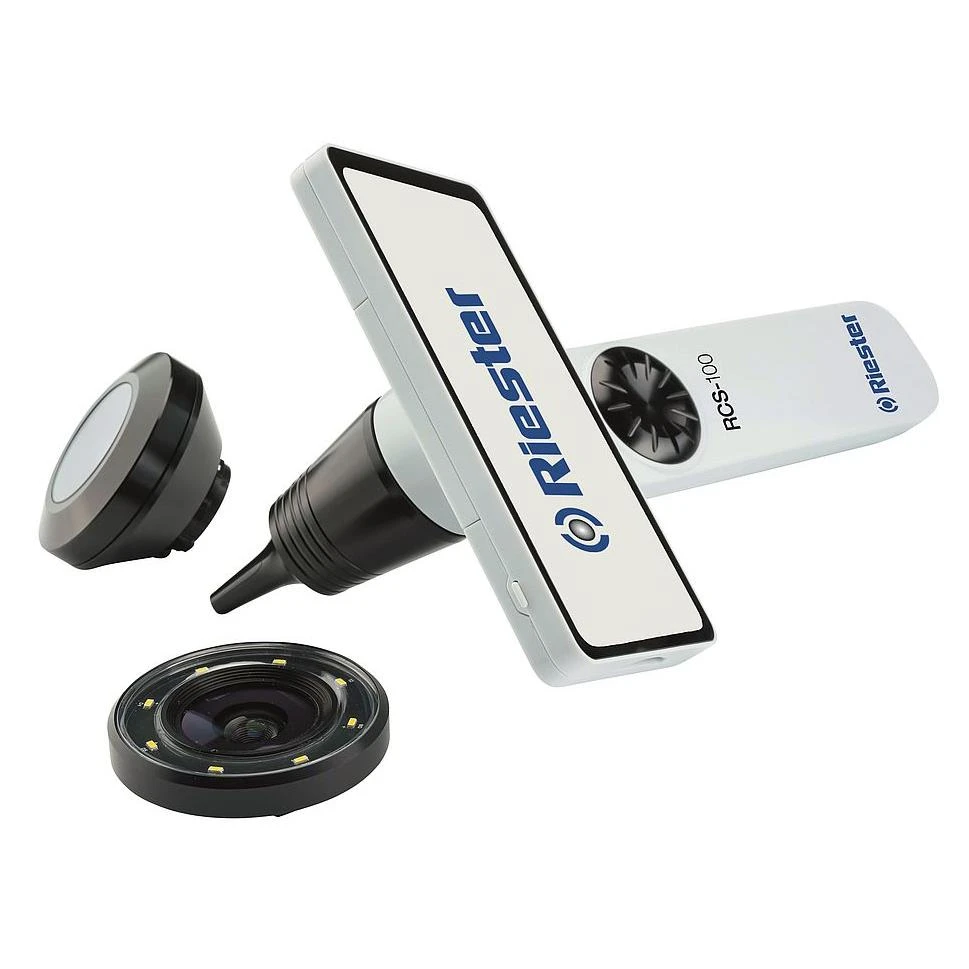

The "HDGO" Lens Configuration
The 1970-HDGO model is specifically defined by the inclusion of three interchangeable lenses:
Otoscope (O): Designed for the ear canal and tympanic membrane. It provides 6x magnification and is compatible with standard disposable specula.
Dermatoscope (D): Used for skin surface analysis. It features 2x to 8x magnification and includes a digital movable ruler on the screen for measuring lesions.
General Lens (G): A wide-angle lens with a 78-degree field of view, ideal for documenting visible wounds, throat exams, or general patient appearance.
Technical Specifications
| Feature | Detail |
| Battery Life | ~3.5 hours of continuous video |
| Charging | Micro USB 2.0 |
| Light Source | 4000K to 5500K LED (depending on lens) |
| Magnification | Up to 8x (digital and optical combined) |
| Connectivity | USB data transfer; Wi-Fi compatible via optional cards |
