Description
Designed for applications requiring exceptional accuracy, stability, and repeatability, VWR® Professional magnetic hotplate stirrers are equipped with superior heating and mixing capabilities. With temperatures ranges up to 550 °C and stirring speeds reaching 1800 rpm, the hotplate stirrers are equipped to handle any research, academic, and industrial application. Available in two sizes.
- Excellent temperature uniformity and powerful stirring
- Includes PT1000 RTD temperature probe
- Easy to read, large LCD displays temperatures, speed, and timer settings
- Industry leading safety features
- Available with NIST Traceable, ISO/IEC 17025 Accredited Calibration Certificate from Troemner
Five year warranty
These microprocessor controlled units provide precise speed control while the powerful continuous duty motor delivers consistent stirring at all speeds providing greater accuracy and ease-in-use for reproducing your results. Display will show last settings, even after power has been turned off. Enhanced electronics regulate heating and will bring samples to the desired temperature, quickly and efficiently.

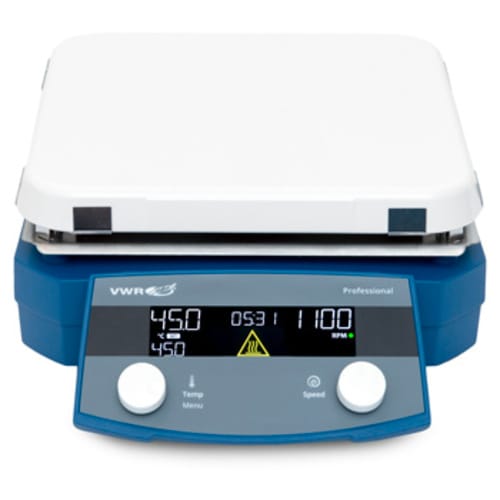

The easy to use and easy to read front panel includes two intuitive dial knobs to navigate the settings menu options. The bright white, backlit LCD, displays both set and actual speed and temperature and timer information for convenient monitoring. Units feature a spill resistant design, channels fluids away from internal components. The rear housing of the hotplate features two support rod holders on each side, enabling flexibility to create a unique set-up for the application. Ceramic top plates provide a chemical-resistant, reflective white top plate that is easy to clean. Temperature Calibration: Three, user defined temperature calibration set points for allowing probe and plate calibrations to an external temperature device.
Hotplates are equipped with a variety of innovative safety features designed to facilitate efficient operation and workplace safety. Units are equipped with an industry leading early detection system that utilizes two independent safety controls to continuously monitor the electronics and shut off the heating before an over-temperature condition occurs. A large 16 mm hot top warning light is illuminated when the heat is turned on. The hot top warning light remains on until the top plate is below 40 °C, even when unit is turned off. In addition the units feature stir protection, if stirrer motor stops or fails, unit will automatically shut down heater. If using the optional temperature probe, in the event the probe disengages from the sample, the heater will automatically shut off.
These models include a ramping feature, them motor slowly increases speed for improved safety and enhanced coupling. Avoids splashing, improves spin bar control, and provides excellent low end speed control. The units also have a maximum temperature limiting function which ensures the plate temperature will not exceed a user defined limit, allowing for control of samples with sensitive flash points. Additionally heating function can be disabled for heating prohibited applications.
Certifications: IP protection class according to DIN EN 60529: IP 32, RoHS compliant. TÜV SÜD certified to CAN/CSA C22.2 61010-1; CAN/CSA C22.2 61010- 2-010; CAN/CSA C22.2 61010-2-051; UL 61010-1; UL 61010-2-010; UL 61010-2-051 Electromagnetic Compatibility: Canada ICES-003 Class A; FCC Part 15 Class A.
